Revamping Crushing Efficiency at Sishen Mine
In 2021, Sishen Mine embarked on a critical infrastructure upgrade, replacing its aging Nordberg Gyratory Crusher. This upgrade was necessary to enhance processing efficiency, maintain safety, and ensure long-term operational reliability. The project required in-depth structural and vibration analysis to accommodate the new crusher while preserving the integrity of existing structures. Euler Structural Engineering played a key role in this process, providing advanced engineering expertise to ensure the project’s success.
Crusher Base Load Analysis
Before installation, engineers from Euler Structural Engineering conducted a thorough analysis of the floor’s capacity to withstand the new crusher’s operational loads. The assessment ensured that the concrete base could handle increased pressure and dynamic forces without compromising structural integrity. Reinforcements and necessary adjustments were identified to extend the durability of the foundation.
Dynamic Vibration Analysis
One of the most critical aspects of the project was evaluating the crusher shaft’s concrete structure for potential resonance issues. Euler Structural Engineering performed a dynamic vibration analysis to determine how the plant’s existing frequencies interacted with the new crusher’s operational frequency. Soil-structure interaction modeling was implemented, considering various soil parameters to achieve the most accurate representation.
To prevent structural resonance, engineers adhered to Anglo American’s strict frequency guidelines: the natural frequency of any major vibration mode had to be either below 0.6 times or above 1.4 times the crusher’s operational frequency. This ensured that harmful vibration amplification did not occur, reducing long-term wear and tear on the structure.
Crusher Dimension Comparisons
A detailed comparison between the new and existing crushers revealed key dimensional differences that affected both installation and future maintenance. Euler Structural Engineering evaluated space constraints, mounting points, and accessibility, ensuring that the new gyratory crusher seamlessly integrated into the current setup without disrupting production flow.
Crusher Base Repairs and Structural Reinforcement
The existing concrete base required modifications to support the new crusher effectively. Engineers designed a comprehensive repair methodology to strengthen the base and ensure long-term stability. The repair process involved reinforcing weak areas, applying advanced concrete mixtures, and implementing crack-resistant techniques to enhance durability.
Final Thoughts
The DMS Primary Crusher Replacement Project at Sishen Mine was more than just an equipment upgrade—it was a meticulously planned structural reinforcement initiative. With the expertise of Euler Structural Engineering, extensive vibration, load, and dimensional analyses ensured the seamless integration of the new gyratory crusher while safeguarding structural integrity. This upgrade positioned Sishen Mine for enhanced efficiency, increased processing capacity, and long-term operational success.

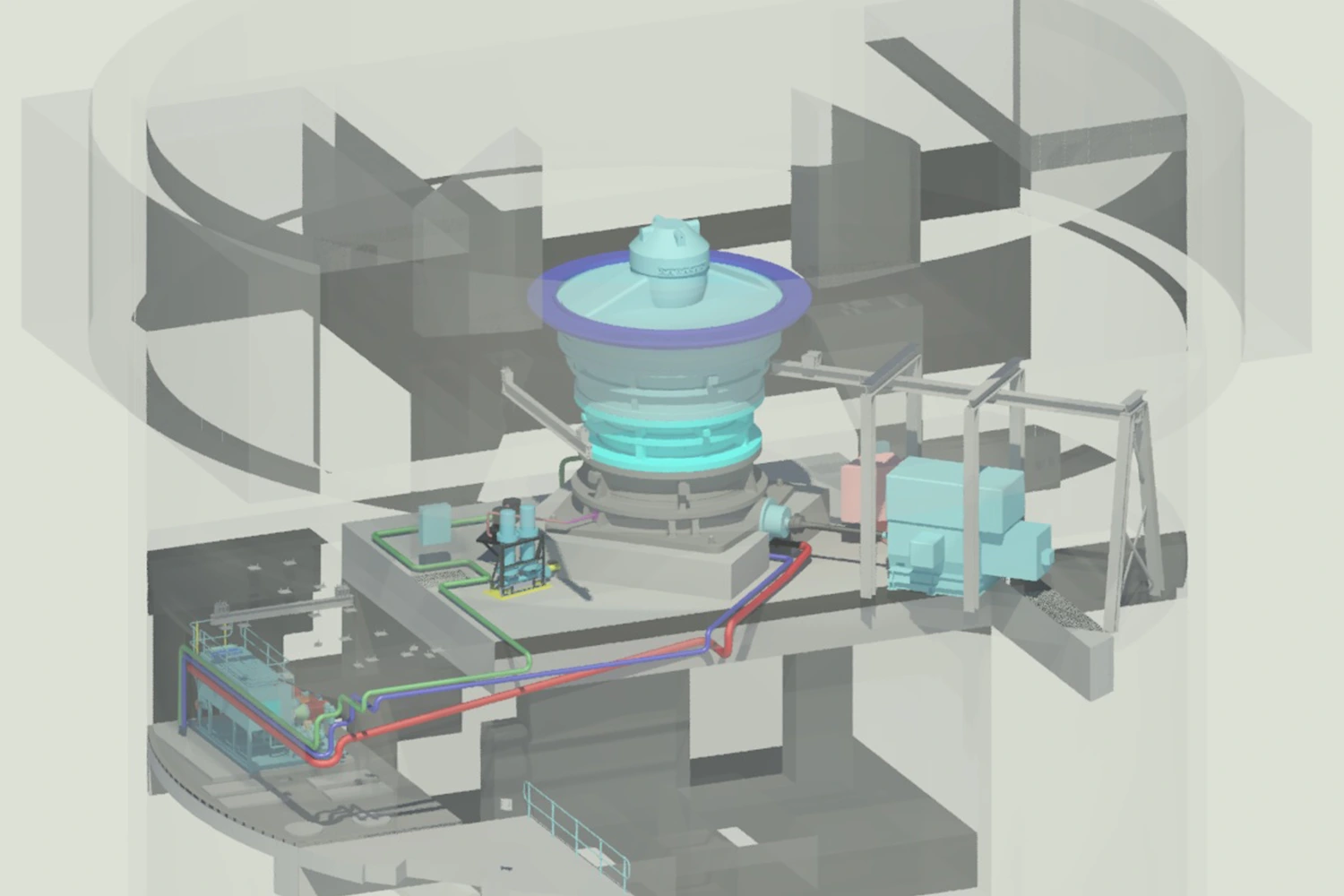

A Crusher base repairs were designed together with a suitable repair methodology.
